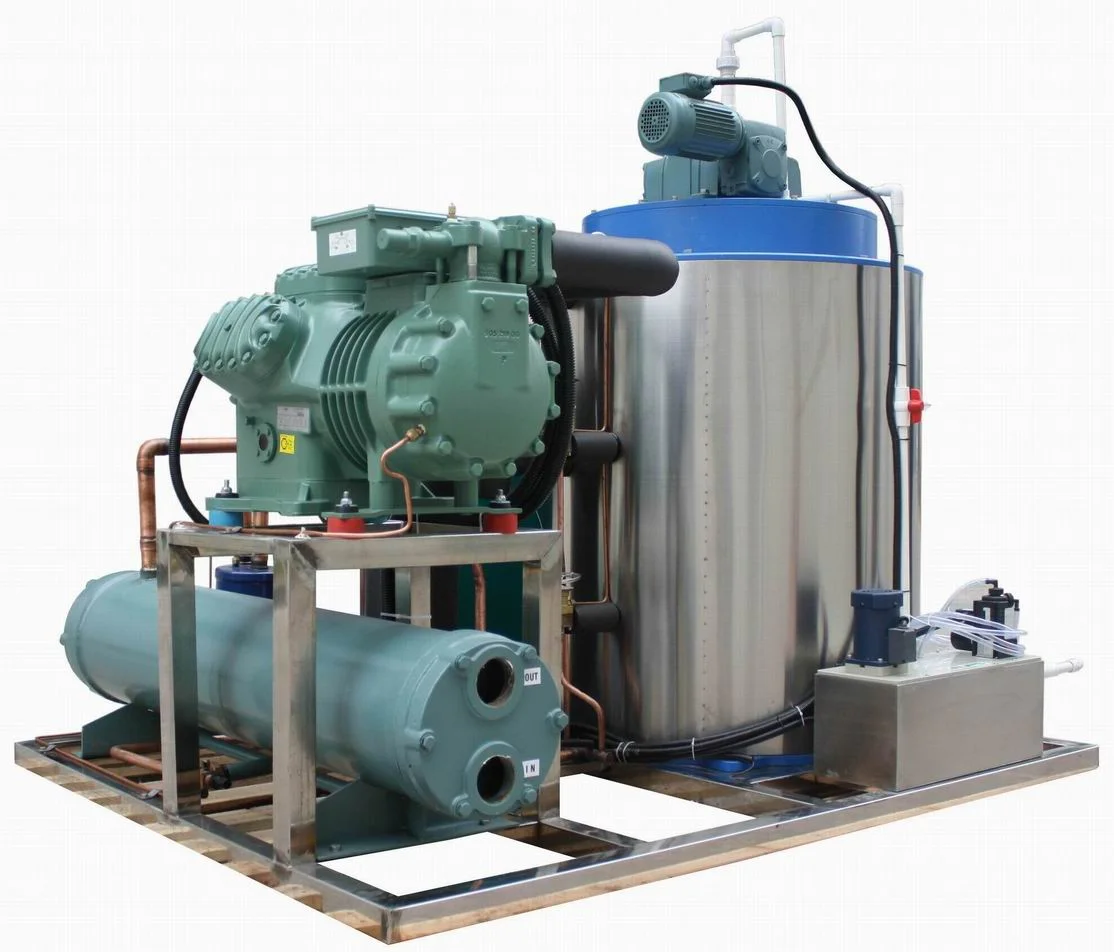

Flake Machine

Internally-Scraping Ice Skate that help reduce energy consumption and prevent leakage

Stainless Steel Material, Ensure Best Heat Transfer Efficiency

Prevent Water Leaking at the bottom of drum

Photoelectric switch is directly installed in the bottom of evaporator

Direct Liquid Feeding and Dry Evaporation

Integrated Modular Equipment for Maintenance Convenience

Why Flake Ice? Its Advantages:

  • Irregular Ice Flakes with Size about 40 x 40 mm and thickness around 1.5-2.5 mm

  • Thin ice can be directly sued for stirring and mixing refrigerated materials

  • No acute edges and corners so it will not damage the surface of the cooled object;

  • Ice Flakes are as cold as below -8 degrees Celsius

  • Large contact area and good mobility to ensure good preservation effect

  • Easy to crush and mold

  • Machine is Small-sized and Convenient for use anytime

Fresh Water Flake Ice Machine Models and Specifications
Model No.Production CapacityIce TemperatureTotal Power KWMachine Size (mm)
MLT-0.5T500-8 Celsius2.7 KW1270 x 1030 x 1810
MLT-1T1,000-8 Celsius4.4 KW1320 x 1280 x 2060
MLT-1.5T1,500-8 Celsius6.2 KW1510 x 1400 x 2350
MLT-2T2,000-8 Celsius7.9 KW1510 x 1400 x 2350
MLT-2.5T2,500-8 Celsius10 KW1510 x 1400 x 2520
MLT-3T3,000-8 Celsius10.7 KW1600 x 1300 x 1220
MLT-5T5,000-8 Celsius17.5 KW1850 x 1450 x 1420
MLT-8T8,000-8 Celsius25 KW2200 x 1800 x 1450
MLT-10T10,000-8 Celsius30 KW2200 x 1800 x 1670
MLT-12T12,000-8 Celsius36 KW2800 x 2100 x 1820
MLT-15T15,000-8 Celsius40 KW3200 x 2100 x 1900
MLT-20T20,000-8 Celsius56 KW3600 x 2200 x 2160
MLT-30T30,000-8 Celsius82 KW3600 x 2200 x 2450
MLT-50T50,000-8 Celsius110 KW3800 x 2600 x 250
Sea Water Flake Ice Machine Models and Specifications
Model No.Production CapacityIce TemperatureTotal Power KWMachine Size (mm)
MLTS-1T1,000-10 Celsius5.5 KW1320 x 980 x 1100
MLTS-2T2,000-10 Celsius12.7 KW1510 x 1100 x 1300
MLTS-3T3,000-10 Celsius20.5 KW1800 x 1450 x 1650
MLTS-5T5,000-10 Celsius28 KW2200 x 1800 x 1500
MLTS-10T10,000-10 Celsius35 KW2500 x 1800 x 1700
